Product Overview

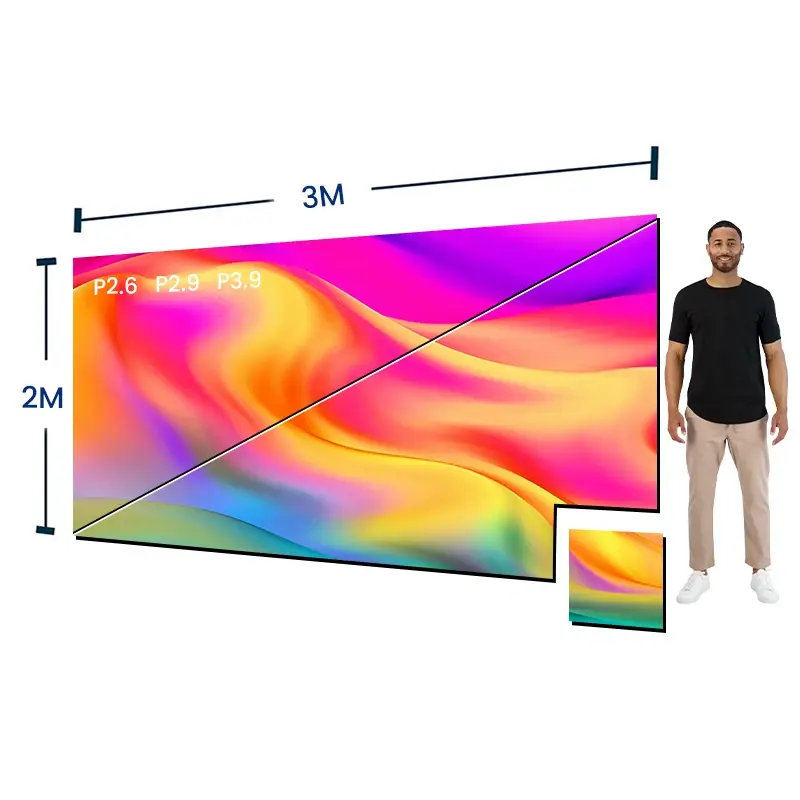

The ENBON P-Series is a professional-grade full-color LED display system engineered for indoor and outdoor advertising, stage events, rental setups, retail environments, and digital signage.
Available in multiple pixel pitches—from ultra-fine P1.56 to large-format P4.8—these panels deliver high brightness, modular assembly, and robust durability suitable for commercial installations and mobile event staging.
Technical Specifications
LED Display Performance
Type: Full Color LED Display
Pixel Pitch Options: 1.9 mm / 2.6 mm / 2.9 mm / 3.9 mm / 4.8 mm / 1.56 mm / 1.95 mm
Pixel Density:
Up to 65,536 dots/m² (fine pitch)
Standard 43,264 dots/m² (mid pitch)
Brightness Range: 800 – 5,500 nits (indoor → outdoor configurations)
Scan Mode: 1/16 Scan
Color: Full Color
Power & Efficiency
Average Power Consumption: ≈ 200 W/m²
Maximum Power Consumption: ≈ 550 W/m²
DIY Supplies: Electrical-ready modular system
Cabinet & Mechanics
Cabinet Dimensions:
500 × 500 mm
500 × 1000 mm
Panel Size Variants: Same as above
Cabinet Weight:
8 kg (500 × 500 mm)
15 kg (500 × 1000 mm)
Construction: Rental-friendly, lightweight modular design
Waterproof Rating: IP65 (outdoor models)
Applications
Ideal for:
Stage and event backdrops
Indoor/outdoor advertising
Retail stores & shopping malls
Restaurant menu boards
Concerts & large venue displays
Exhibition booths
Wide-format video walls
Media & Documentation
Includes:
Datasheet
Product photos
EDA/CAD models
Additional technical materials
Warranty & Safety
Warranty: 3 years
High-Concern Chemicals: None
Certifications: (upon request per model)
Origin: Guangdong, China
General Info
Model Numbers: P2.6 / P2.9 / P3.9 / P4.8 / P1.56 / P1.95
Use Case: Commercial advertising, retail, stage rental, signage
LED Pixel Range: 2–10 mm supported across the series
